Pathfinder Folding
Machine Controls

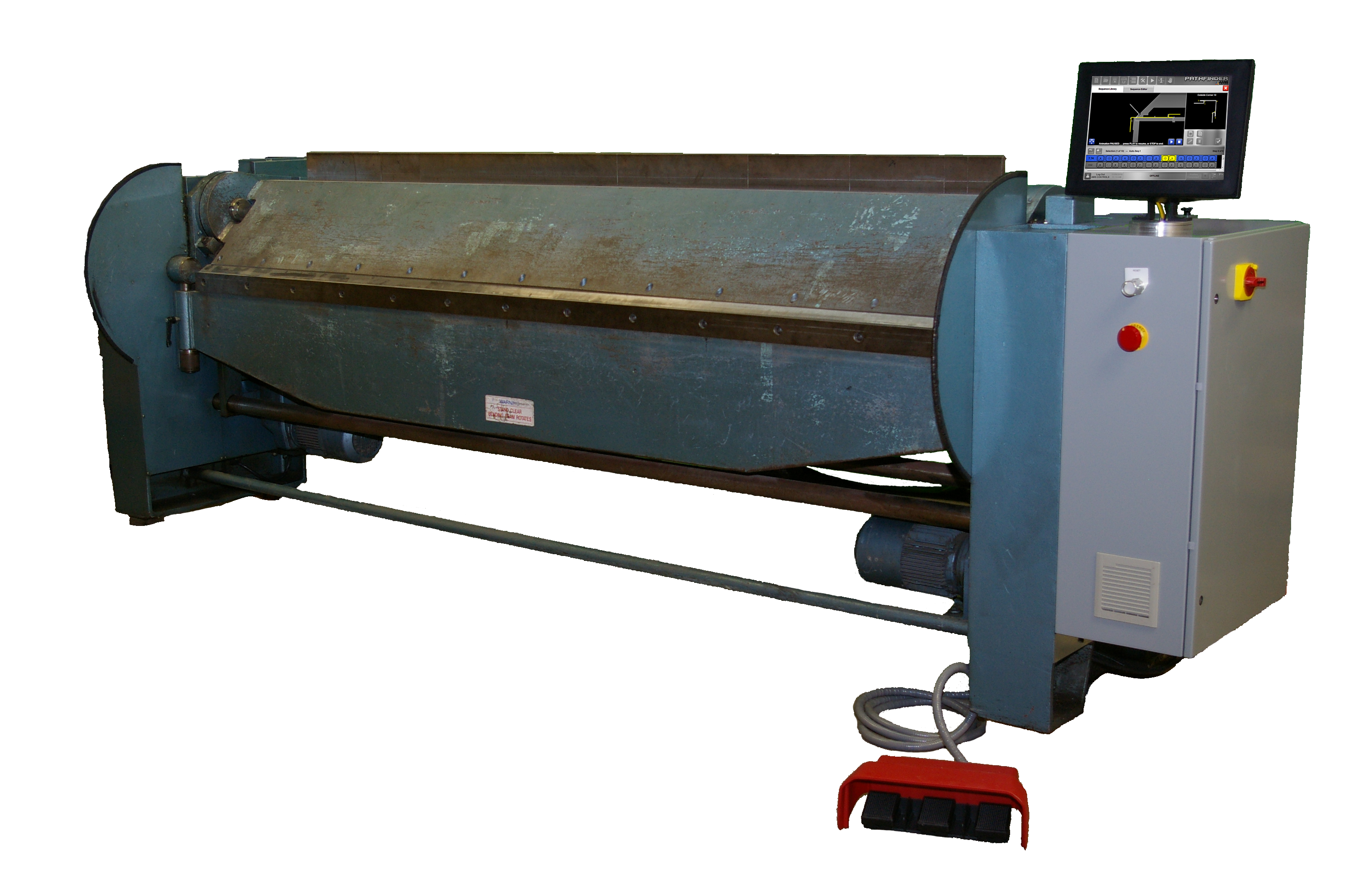

Pathfinder™ is the world’s easiest-to-use graphic controller for folding machines. It is the result of years of development by AMS Controls and is intended for both retrofit and new machine applications. With the latest release your folding machine can do even more than before.

Pathfinder gives your controls even better responsiveness and speed while improving automatic bend sequencing and the user experience.

DocumentationSupport

With Pathfinder, manufacturers achieve professional quality and productivity regardless of the machine operator’s experience level. New profile shapes are quickly programmed by simply entering dimensions and geometric features. Pathfinder automatically determines the optimum bending sequence so production can start immediately without any trial and error. It is also very easy to find, organize, and use existing parts in the Profile Library. With a few keystrokes, an operator can quickly find the desired profile even if the library has thousands of profiles available.

Pathfinder also allows customers to finally integrate their trim shops. AMS Controls has been integrating roll forming machine production for more than 20 years and now we’ve applied those principles to folding machines, resulting in fewer mistakes and increased productivity for our customers.

Enhanced Automatic Sequencing

Automatic sequencing is now faster and provides even better solutions than before. Users can customize how the automatic sequencer works to ensure ideal bend sequences, like preferring outside hems first or avoiding flips or rotates. Partial bends are also available, creating even better solutions than in previous versions.

Profile Sketching

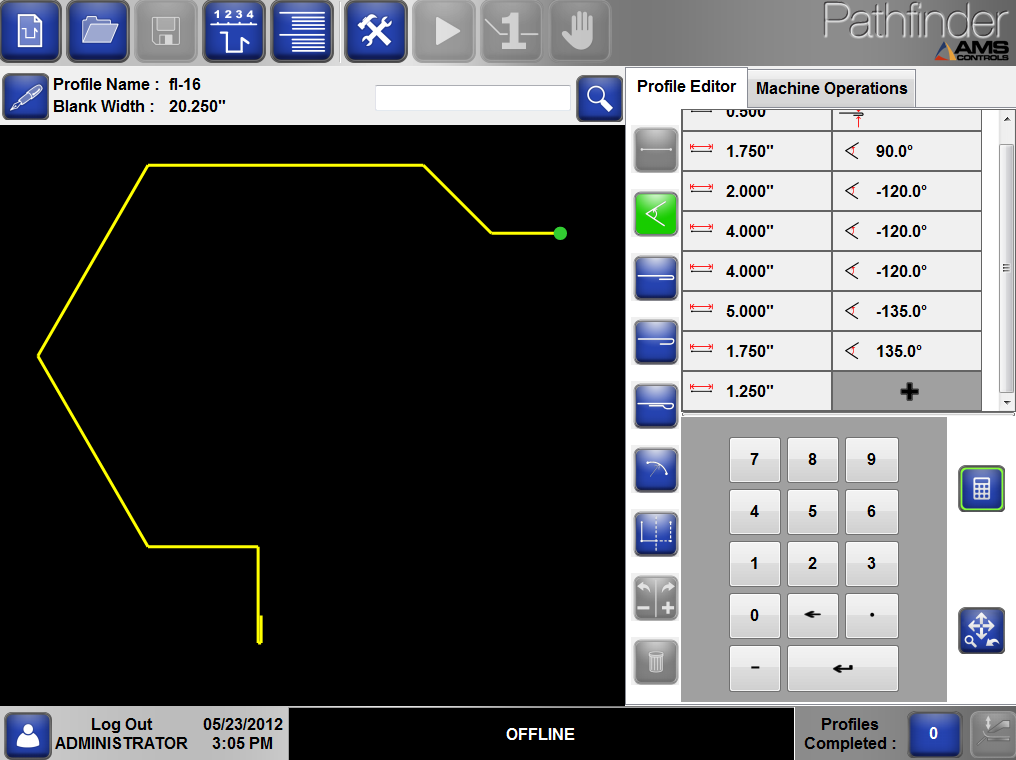

Create new profiles by touching the screen to create vertices and segments. Intuitive “sketching” allows you to orient profiles in any direction, making them just like you would make a written sketch. Available in version 2.01.03 and later.

One-Step Production

Regular, high-volume production can be done even faster by using One-Step Mode. Make quick, individual bends without creating profiles or jobs.

Increased Performance

Pathfinder is now faster and more responsive, making profile creation even more efficient.

Hard Steel Solutions

With the addition of parameters for double hem closes and extra bends on inside hems for hard steel profiles, users can finally take advantage of the graphical programming features that Pathfinder offers.

More Supported Folding Machines

The list of folding machines supported by Pathfinder continues to grow. Please contact us to see if Pathfinder is compatible with a specific folding machine.

Simplified User Interface

Pathfinder’s enhanced user interface makes it even easier to create, edit and search for profiles. Find and organize parts by category and sub-category or search by name.

Automatic Springback Compensation

This feature measures the actual angle produced after springback and automatically corrects the bend. It can be configured to learn the springback on all angles for the first part and use those values for other parts. *Automatic springback compensation is not available on all systems.

Safety System Available

Pathfinder is compatible with the guarding system FoldGuard for Pathfinder. This system allows optical protection along the clamping area plus automatically monitors the clamp motion, stopping performance, and speed to ensure maximum safety.

Multiple Languages

Pathfinder speaks multiple languages. Version 2.00.02 added Spanish to the list! Other languages include German, French, Russian, and Chinese.
